Gemini Focus Motor Mounting Brackets
NOTE: The picture may not be representative of the actual product.
See product/button descriptions below.
These brackets allows you to mount a Gemini Focus Motor onto your telescope.
All necessary hardware is provided, unless already supplied with the Gemini.

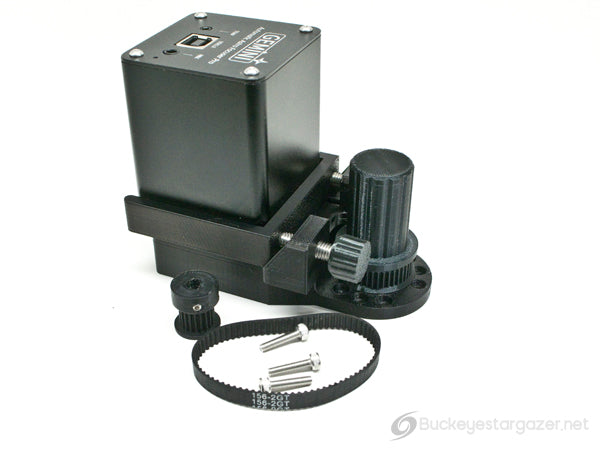

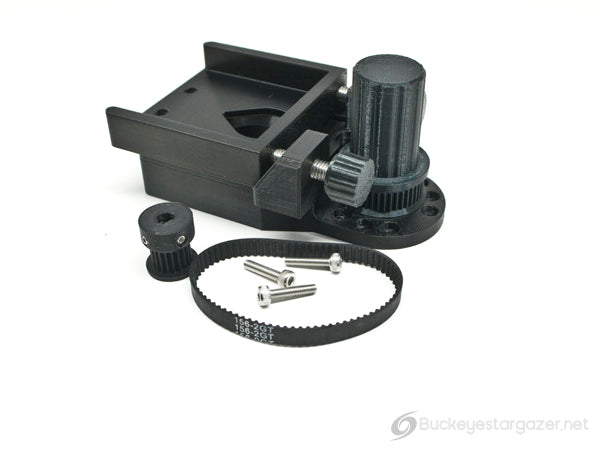

QUICK focus release brackets for SCTs: Utilizing a belt drive system and innovative push fit flexible drive gear knob, this bracket will allow you to easily disengage the belt drive for manual focusing. This is especially handy when switching between configurations with different focal lengths.
See pictures for illustrations of "modern" vs "classic" Celestron focuser mounting brackets.
SCT bracket note: As the focuser moves there is an internal screw that also travels in and out. The EAF bracket is designed to allow for some of this travel around the focus point, but does not allow for the full outward focuser travel. Prior to installing the bracket make sure the scope is roughly in focus.
If you don't see a bracket that meets your needs I would be glad to work with you to come up with a solution.
Color Note: The coupler will be black due to the special filament used for the coupler.
See installation instructions below.
| GEM-C5 | Gemini motor bracket for Celestron C5 |
| GEM-C5-QUICK | Gemini motor QUICK motor bracket for Celestron C5 scopes. Easily disengage belt drive system to quickly manually focus the scope |
| GEM-C6.8.9.25-R8 | Gemini motor bracket for modern Celestron C6/C8/C9.25/RASA8 Scopes that have 27mm between focuser mounting screws |
| GEM-C6.8.9.R8-Q | Gemini motor QUICK bracket for modern Celestron C6/C8/C9.25/RASA8 Scopes that have 27mm between focuser mounting screws. Easily disengage belt drive system to quickly manually focus the scope |
| GEM-C6.8.9-Class | Gemini motor bracket for classic Celestron C6/C8/C9.25 scopes that have 23mm between focuser mounting screws |
| GEM-C11.14.R11v2 | Gemini motor bracket for modern Celestron C11/C14/RASA11v2 scopes that have 34mm between focuser mounting screws |
| GEM-C11.14.R11v2-Q | Gemini motor QUICK bracket for modern Celestron C11/C14/RASA11v2 Scopes that have 34mm between focuser mounting screws. Easily disengage belt drive system to quickly manually focus the scope |
| GEM-C11.14-Class | Gemini motor bracket for classic Celestron C11/C14 scopes (non-Fastar/Edge) that have 34mm between focuser mounting screws |
| GEM-C11.14-Class-Q | Gemini motor QUICK bracket for classic Celestron C11/C14 Scopes (NON Fastar/NON Hyperstar) that have 27mm between focuser mounting screws. Easily disengage belt drive system to quickly manually focus the scope |
| GEM-MLXACF | Gemini motor bracket for Meade LX200ACF scopes |
| GEM-MLXACF-Q | Gemini motor QUICK bracket for Meade LX200ACF/LX90ACF scopes. Easily disengage the belt drive system to quickly manually focus. |
| GEM-MLXGPS | Gemini motor bracket for Meade LX200GSP scopes |
| GEM-MLXGPS-Q | Gemini motor QUICK bracket for Meade LX200GPS/LX90GPS scopes. Easily disengage the belt drive system to quickly manually focus. |
| GEM-MLXClass | Gemini motor bracket for Meade LX200 Classic scopes |
| GEM-MLXClass-Q | Gemini motor QUICK bracket for Meade LX200 Classic scopes. Easily disengage the belt drive system to quickly manually focus. |
| GEM-GSO-2CRF-M | Gemini motor bracket for the GSO 2" Crayford Dual Speed Focuser |
| GEM-GSO-2LBF | Gemini motor bracket for the GSO Linear Bearing Focuser |
| GEM-FTF15 | Gemini motor bracket for Feathertouch FTF15xx Crayford focuser |
| GEM-FTF20-Cray | Gemini motor bracket for Feathertouch FTF20xx Crayford focuser |
| GEM-FTF30 | Gemini motor bracket for Feathertouch refractor focusers (FTF20, FTF25, FTF30, FTF32 Rack and Pinion) |
| GEM-ZWO-Heli-M42 | Gemini motor bracket for the ZWO M42 Helical focuser |
| GEM-ZWOOAG-Heli | Gemini motor bracket for the ZWO 1.25" Helical focuser on the OAG-L and OAG-L-M68 |
| GEM-Lunt-1.25RP | Gemini motor bracket for Lunt 1.25" Rack and Pinion focusers (single and dual speed) |
| GEM-Lunt-2Cray | Gemini motor bracket for the Lunt 2" Crayford focuser |
| GEM-Lunt-2RP | Gemini motor bracket for the Lunt 2" Rack and Pinion focuser |
Installation Instructions:
| All Gemini SCT QUICK Brackets | download |
| All Celestron SCT Gemini Instructions | download |
| GEM-MLXGPS, GEM-MLXACF, GEM-MLXClassic | download |
| GEM-MLX850 | download |
| GEM-FTF15 | download |
| GEM-Lunt-1.25RP | download |
| GEM-Lunt-2Cray | download |
| GEM-Lunt-2RP | download |
Printed in durable, temperature tolerant PETG filament.
