QHY Q-Focuser Mounting Brackets
These brackets allows you to mount a QHY Q-Focuser onto your telescope.
Either the Q-Focuser Standard version or High Precision version can be used with most of these mounting brackets, unless otherwise noted. Installation instructions are provided below and include directions for both versions. All necessary hardware is provided, unless already provided by QHY with the Q-Focuser.
QUICK focus release brackets for SCTs: Utilizing a belt drive system and innovative push fit flexible drive gear knob, this bracket will allow you to easily disengage the belt drive for manual focusing. This is especially handy when switching between configurations with different focal lengths.
See pictures for illustrations of "modern" vs "classic" Celestron focuser mounting brackets.
SCT bracket note: As the focuser moves there is an internal screw that also travels in and out. The EAF bracket is designed to allow for some of this travel around the focus point, but does not allow for the full outward focuser travel. Prior to installing the bracket make sure the scope is roughly in focus.
If you don't see a bracket that meets your needs I would be glad to work with you to come up with a solution.
Color Note: The coupler will be black due to the special filament used for the coupler.
See installation instructions below.
| QHY-C5 | QHY Q-Focuser bracket for the Celestron C5 |
| QHY-C6.8.9-Class | QHY Q-Focuser bracket for Celestron C6/8/9.25 scopes that have 23mm between focuser mounting screws |
| QHY-C6.8.9.R8 | QHY Q-Focuser bracket for modern Celestron C6/C8/C9.25/RASA8 Scopes that have 27mm between focuser mounting screws |
| QHY-C6.8.9.R8-Q | QHY Q-Focuser bracket for modern Celestron C6/C8/C9.25/RASA8 Scopes that have 27mm between focuser mounting screws. Easily disengage belt drive system to quickly manually focus the scope |
| QHY-C11.14-Class | QHY Q-Focuser bracket for classic Celestron C11/C14 scopes (non-Fastar/Edge) that have 34mm between focuser mounting screws |
| QHY-C11.14.R11v2 | QHY Q-Focuser bracket for modern Celestron C11/C14/RASA11v2 scopes that have 34mm between focuser mounting screws |
| QHY-C11.14.R11v2-Q | QHY Q-Focuser bracket for modern Celestron C11/C14/RASA11v2 scopes that have 34mm between focuser mounting screws. Easily disengage belt drive system to quickly manually focus the scope |
| QHY-MLX850 | QHY Q-Focuser bracket for Meade LX600/LX850 scopes |
| QHY-MLXACF | QHY Q-Focuser bracket for Meade LX200ACF scopes |
| QHY-MLXGPS | QHY Q-Focuser bracket for Meade LX200GPS scopes |
| QHY-MLXClassic | QHY Q-Focuser bracket for Meade LX200 Classic scopes |
| QHY-Bsteeltrack | QHY-Q-Focuser bracket for Baader Diamond Steeltrack focuser |
| QHY-FTF20-Cray | QHY Q-Focuser bracket for Feathertouch FTF20xx Crayford focuser |

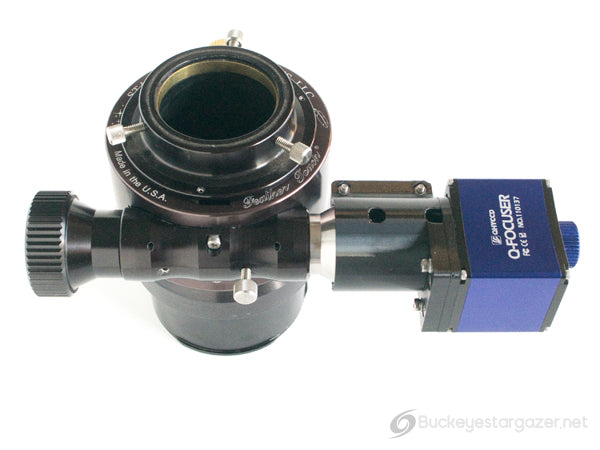

| QHY-FTF30 | QHY Q-Focuser bracket for Feathertouch refractor focusers (FTF20, FTF25, FTF30, FTF32 Rack and Pinion) |
| QHY-FTF35 | QHY Q-Focuser bracket for Feathertouch FTF35 refractor focusers |
| QHY-FTM-Retro | ZWO EAF bracket for Feathertouch Retrofit focusers (incl. Takahashi FS-128, TOA-130 etc) |
| QHY-FTM-SCT | ZWO EAF bracket for Feathertouch Micro (incl. SCTs and RASA11v1) |
| QHY-GSO-2CRF-M | QHY Q-Focuser bracket for the GSO 2" Crayford Dual Speed Focuser |
| QHY-GSO-2LBF | QHY Q-Focuser bracket for the 2" GSO Linear Bearing Focuser/TS Monorail Focuser |
| QHY-GSO-3.25LBF | QHY Q-Focuser bracket for the 3.25" GSO Linear Bearing Focuser |
| QHY-ZWO-Heli-M42 | QHY Q-Focuser bracket for the ZWO 1.25" Helical focuser with M42 mount |
| QHY-ZWOOAG-Heli | QHY Q-Focuser bracket for the ZWO 1.25" Helical focuser on the OAG-L and OAG-L-M68 |

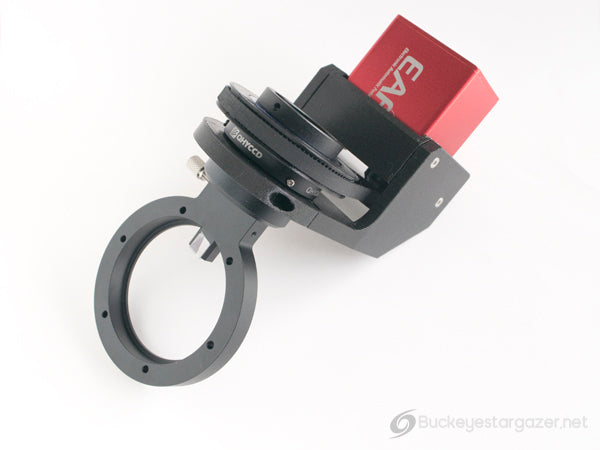

| QHY-QHYOAG-Heli | QHY Q-Focuser bracket for the QHYOAG S/M/L and Pro |
| QHY-AskarOAG-Heli | QHY Q-Focuser bracket for the Askar OAG |
| QHY-POneOAG-Heli | QHY Q-Focuser bracket for the Player One OAG (Max and Mini) |
| QHY-WO-WIFD | QHY Q-Focuser bracket for the William Optics WIFD R/P Focuser |
| QHY-WO-Cray | QHY Q-Focuser bracket for the William Optics Crayford Focuser |
| QHY-LP2 | QHY Q-Focuser bracket for Long Perng 2" Focuser (R/P and Crayford) |
| QHY-Redcat51-Plus | QHY Q-Focuser bracket for the William Optics Redcat 51 |
| QHY-Redcat71 | QHY Q-Focuser bracket for the William Optics Redcat 71 |
| QHY-AskarFMA230 | QHY Q-Focuser bracket for Askar FMA230 |
| QHY-Lunt-Cray | QHY Q-Focuser bracket for Lunt Dual Speed Crayford focuser |
| QHY-Lunt-RP | QHY Q-Focuser bracket for Lunt Dual Speed Rack and Pinion Focuser |
| QHY-SVAccess | QHY Q-Focuser bracket for the Stellarvue Access Telescope focuser |
| QHY-SWNewtCray | QHY Q-Focuser bracket for the SkyWatcher dual speed NEWTONIAN crayford focuser, NON low profile only |
Installation Instructions:
| Q-Focuser SCT QUICK | download |
| All Celestron SCT Q-Focuser Instructions | download |
| Q-Focuser-MLXGPS, Q-Focuser-MLXACF, Q-Focuser-MLXClassic | download |
| Q-Focuser-MLX850 | download |
| Q-Focuser-FTM-SCT, Q-Focuser-FTM-Retro | download |
| Q-Focuser-FTF20-Crayford | download |
| Q-Focuser-FTF30, Q-Focuser-FTF3 | download |
| Q-Focuser-GSO-2LBF, Q-Focuser-GSO-3.25LBF | download |
| Q-Focuser-GSO-2CRF-M | download |
| Q-Focuser-ZWO-Helical-M42, Q-Focsuer-ZWOOAG-Helical, Q-Focuser-QHYOAG-Helical, Q-Focuser-AskarOAG-Helical | download |
| Q-Focuser-WO-WIFD | download |
| Q-Focuser-BSteelTrack | download |
| Q-Focuser-LP2RP | download |
| Q-Focuser-Redcat51 Installation Instructions | download |
| Q-Focuser-Redcat71 Installation Instructions | download |
| Q-Focuser-AskarFMA230 Installation Instructions | download |
| Q-Focuser-SVAccess Installation Instructions | download |
| Q-Focuser-Lunt-Crayford, Q-Focuser-Lunt-RP Installation Instructions | download |
Printed in durable, temperature tolerant PETG filament.
